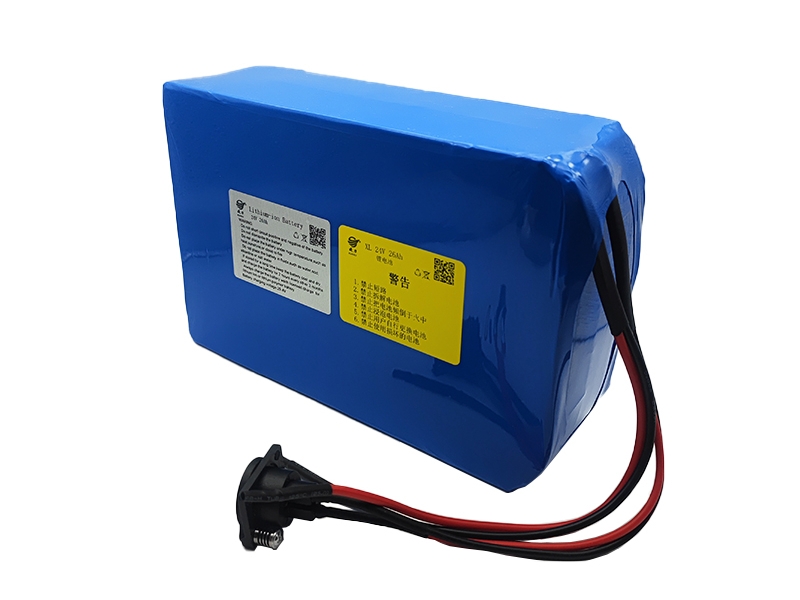

24VLow temperature lithium battery Product Model: XL 24V 26000mAh
Technical parameters of 24V Low temperature lithium battery (specifically can be designed according to customer requirements-voltage/capacity/size/line)

Single battery model: 18650
 · Single battery voltage: 3.7V
 · Nominal voltage after the battery pack is assembled: 24V
 · Single battery capacity: 2.6Ah
 · Battery combination mode: 6 strings and10 parallels
 · Battery voltage range after combination: 18V~25.2V
 · Battery capacity after combination: 26AH
 · Battery pack power: 624W
 · Battery pack size: 113*185*68mm
 · Maximum discharge current: <26A
 · Instantaneous discharge current: 52A~78A
 · Maximum charging current: 0.2-0.5C
 · Charge and discharge times: >500 times
 · Main chip: (Seiko, TI)

24V Low temperature lithium battery
 · Comply with relevant national standards and requirements for batteries
 · All finished battery products have been calibrated and tested before leaving the factory and can be used normally
